Key data

  • Client: Mozambique Ports and Railway Portos e Caminhos de Ferro de Moçambique, E.P. (CFM)
  • Planning: 2000 - 2004
  • Construction: 2004 - 2008
  • Scope of planning:

    Site investigation
    Detailed engineering
    Tender documents
    Assistance during award
    Site supervision

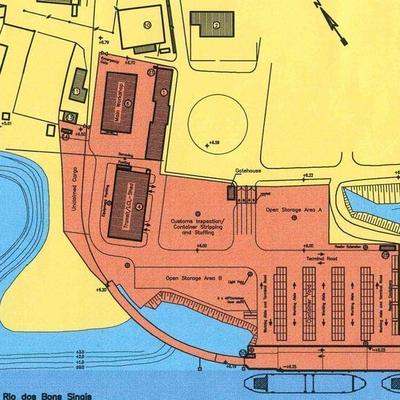

Rehabilitation of Port of Quelimane, Mozambique

The port is the maritime transport connection to Maputo, South Africa and Europe.

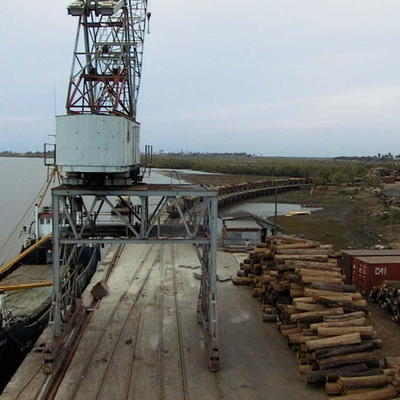

The main quay structure, including founda-tion piles of reinforced concrete, was constructed in 1953 and extended in 1968. The overall quay length is about 210 m which is to be rehabilitated.

Concrete repair measures are determined to remove the damage resulting from corrosion attacks;

  • Galvanic anode system shall be provided to control the reinforcing steel corrosion problems in the concrete in future,
  • The existent quay structure shall be strengthened to meet the loads of the modern cargo handling equipment,
  • A complete and independent fendering system shall be installed in front of the quay line,
  • The dredging depth in front of the berths shall be re-established,
  • Container storage area behind the main berth shall be developed and paved, including facilities for reefer containers,
  • The same applies for the remaining open storage areas,
  • New entrance/outlet gate with fencing for the port shall be provided, including an
  • efficient road system within the port area,
  • Supply systems for electric power and water shall be completely rehabilitated,
  • The Port Administration Building shall be modernised and rehabilitated.
